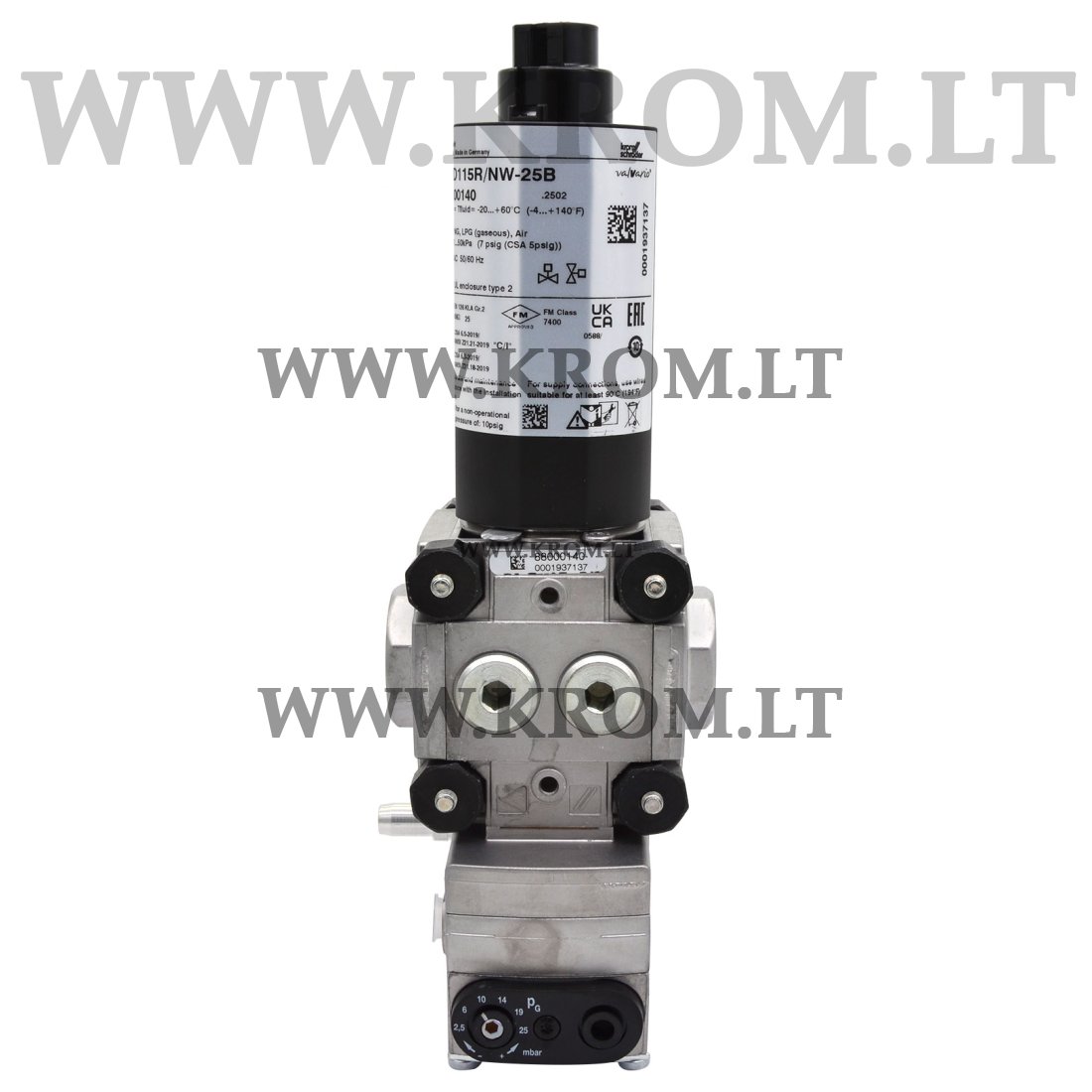

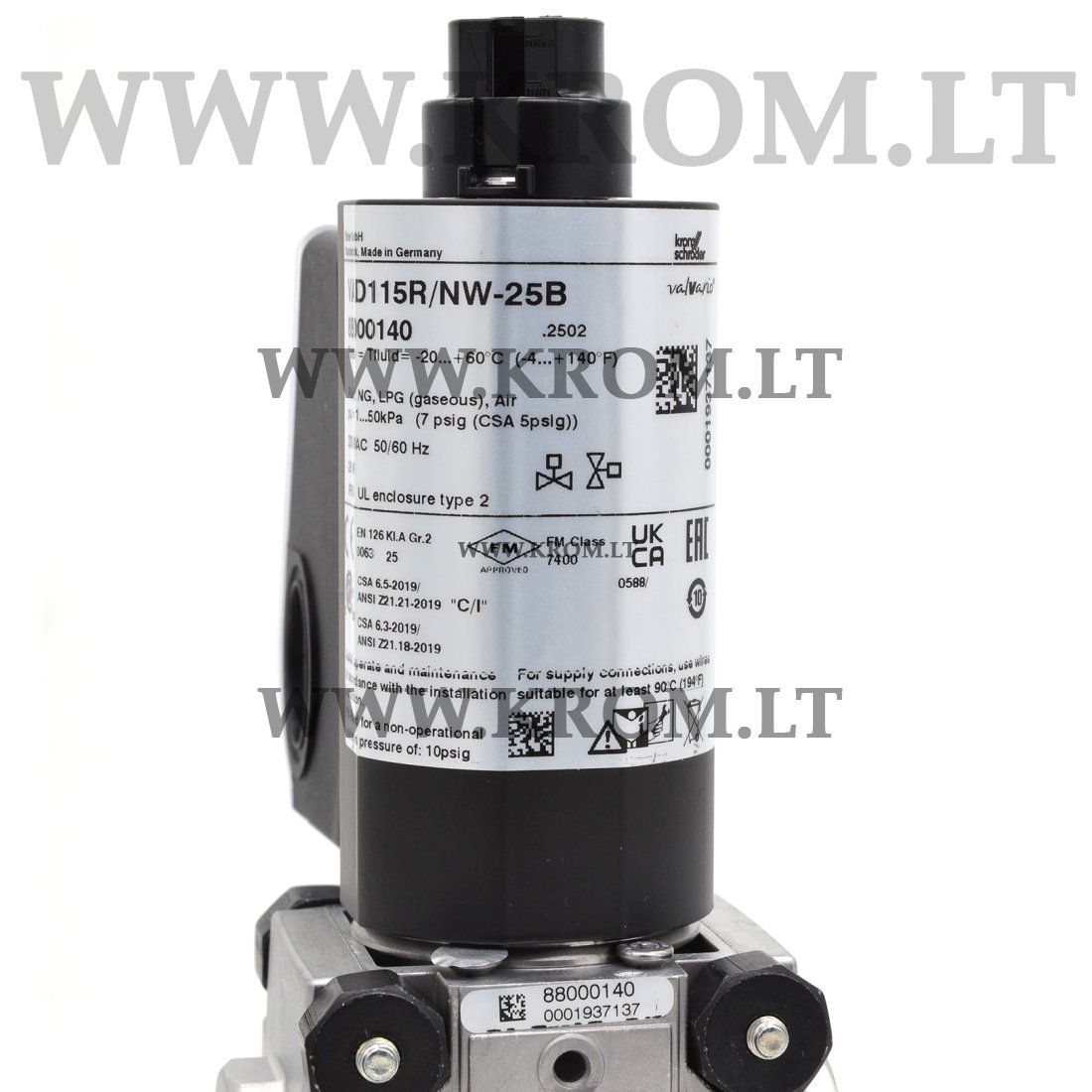

Kromschroder VAD 115R/NW-25B, pressure regulator (88000140)
SKU:
88000140
Kromschroder
88000140
Kromschroder pressure regulator with solenoid valve
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65, FM and CSA approved
Size 1
EU certified
Inlet: DN 15 (1/2'')
Outlet: DN 15 (1/2'')
Rp internal thread
Quick opening, quick closing
Mains voltage: 230 V AC, 50/60 Hz
Electrical connection: M20 cable gland
Outlet pressure range: 2.5-25 mbar
Valve seat: reduced
Accessories, right: 2 screw plugs
Accessories, left: 2 screw plugs
For safeguarding and control of the gas pressure, Class A pressure regulator to EN 88, Class A solenoid valve to EN 161, for gas, air and biologically produced methane, pu max. 500 mbar (7 psig), with pilot lamp, IP 65, FM and CSA approved
Size 1
EU certified
Inlet: DN 15 (1/2'')
Outlet: DN 15 (1/2'')
Rp internal thread
Quick opening, quick closing
Mains voltage: 230 V AC, 50/60 Hz
Electrical connection: M20 cable gland
Outlet pressure range: 2.5-25 mbar
Valve seat: reduced
Accessories, right: 2 screw plugs
Accessories, left: 2 screw plugs
Replacing a VAD 115R/NW-25B, 88000140 pressure regulator is a good solution to make your equipment work again. We offer a wide range of Kromschroder spare parts for burners, gas trains etc. We supply original Elster (Kromschröder) products.
If you have any queries about Kromschroder valvario gas valves or any other Kromschroder spare parts, please write us at 624burner@gmail.com, quoting the item code 88000140.
- Inlet size DN 15 (1/2")
- Inlet type Rp internal thread
- Outlet size DN 15 (1/2")
- Outlet type Rp internal thread
- Pu max. 0.5 bar
- Opening Quick
- Closing Quick
- Voltage 230 V AC
- Weight, kg 1,926
- Commodity code 84818059
- Country of origin DE
