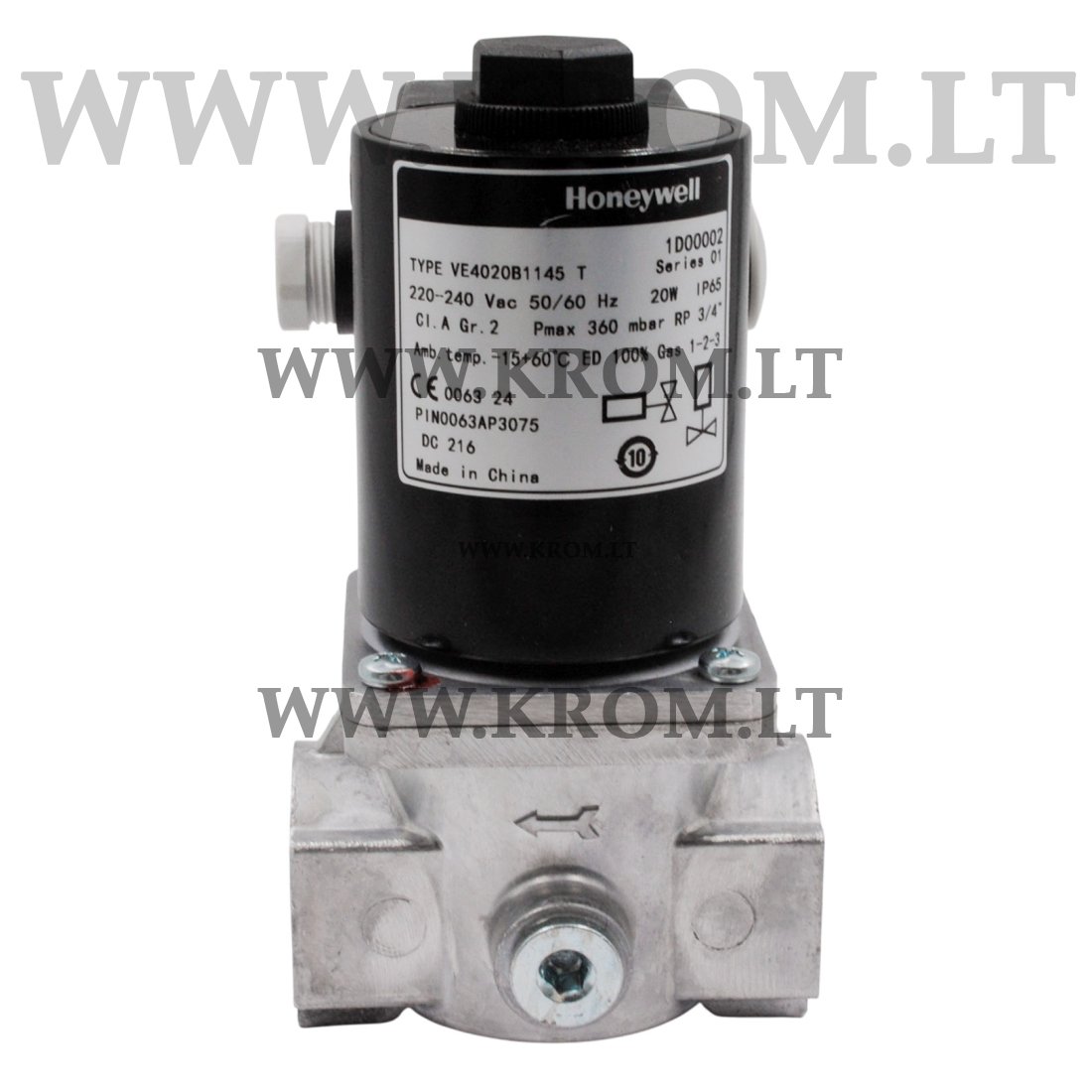

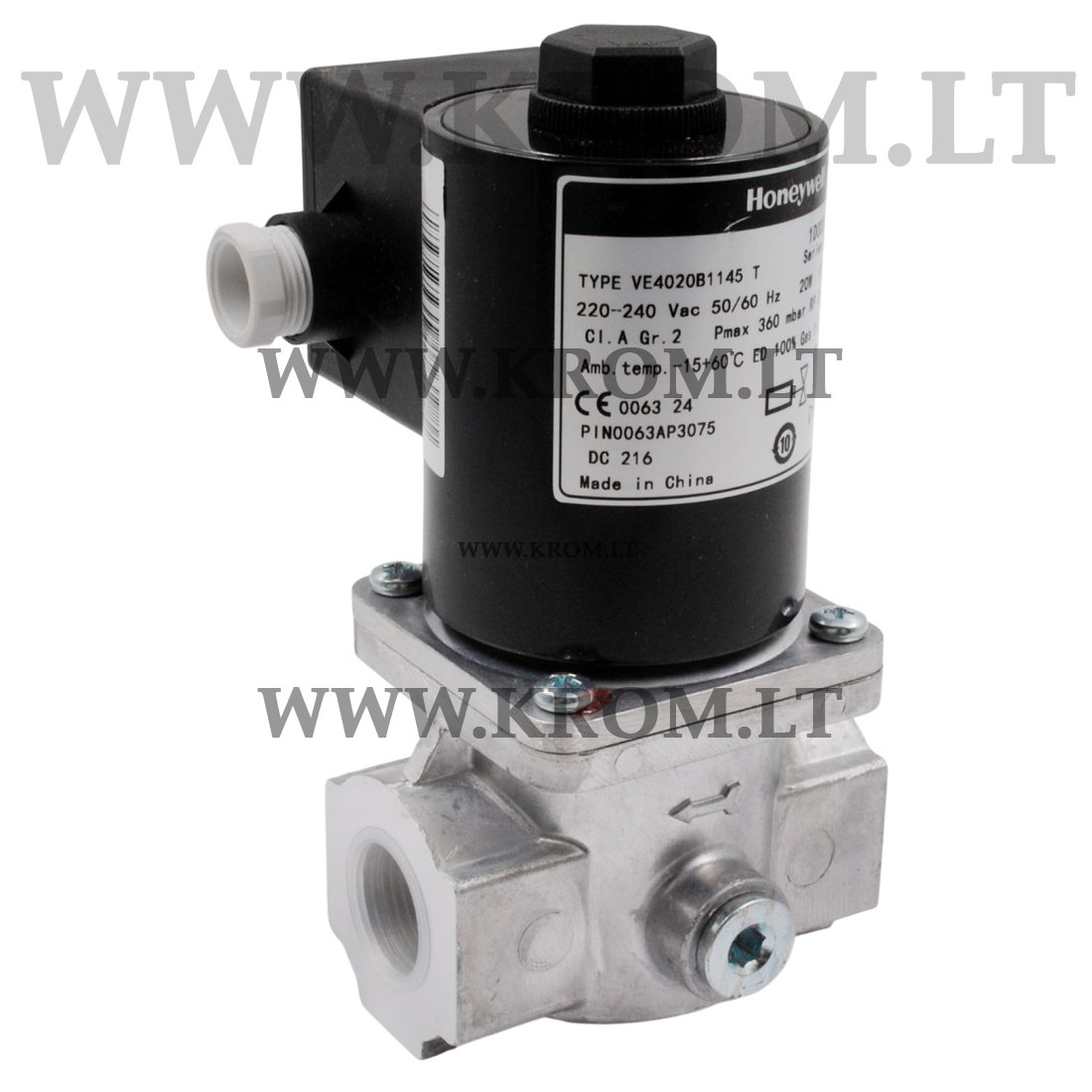

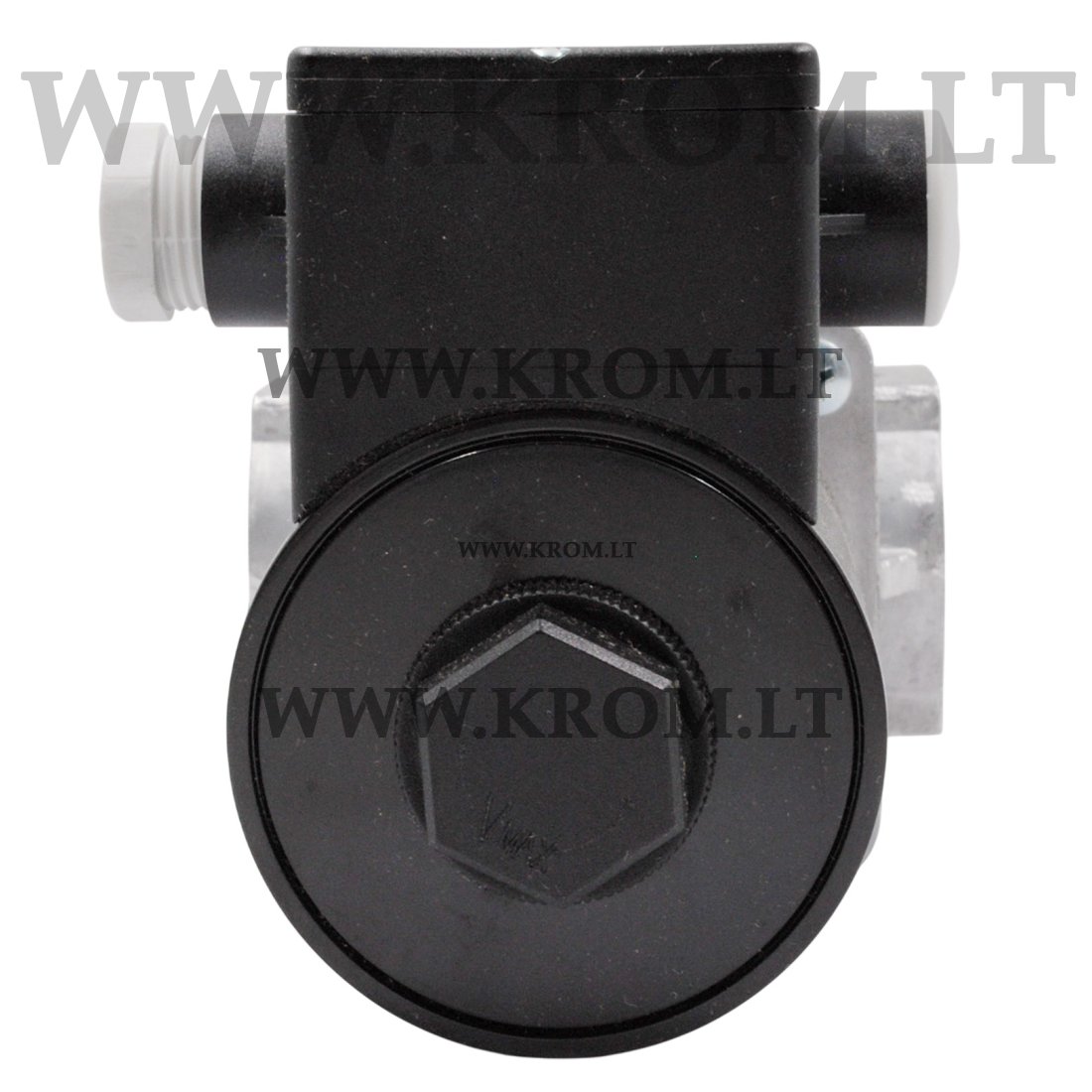

Honeywell VE4020B1145T solenoid valve DN20 360mb 230V IP65 PG11 throttle

Brand: Honeywell
SKU: VE4020B1145T
Honeywell VE 4020 B 1145T solenoid valve DN20, VE4020B1145T
Quantity:
+
PRICE ON REQUEST
624burner@gmail.com
Shipping methods

TNT delivery service

Pick up in our office

Payment methods

Invoice payment

Cash

Honeywell VE4020 B 1145T combined valve ignition system, normally closed, manages gas flow in burners, boilers, and furnaces. The spring mechanism keeps the valve closed without power. The flow regulator on the coil allows precise adjustments. Response time is 1 second, with a frequency of up to 20 cycles per minute. The valve features wrench flats and extra ports for installation. The coil is replaceable, rotates 360°, and includes a built-in filter for protection.

Honeywell VE4020B 1145T combined gas valve technical data:

  • Pipe sizes: Inlet and outlet 3/8” up to 2” internal parallel pipe thread according to ISO 7-1
  • Mounting and orientation: The valve may be assembled on the pipeline within plus or minus 90 degrees of the vertical axis and 30 cm. air space around the coil assy
  • Torsion and bending stress: Pipe connections meet group 2, according to EN161 requirements
  • Ambient temperature range: -15 ... 60 °C
  • Electrical connection: Plug connection according to PG11
  • Optional: Male DIN plug connector according to ISO4400
  • Coil insulation solenoid valves: Insulation material according to class F
  • Valve body: Aluminum alloy die-cast
  • Bottom plug: Rp 1/4” for Closed Position Indication (CPI) switch
  • Strainer: AISI 303 steel
  • Closing spring: AISI 302 steel
  • Valve plunger: Chrome plated Fe 360B steel sliding on anti-friction bearing
  • Seals and gaskets: Hydrocarbon resistant NBR rubber type
  • Optional: Viton rubber type


Replacing a Honeywell VE 4020 B 1145T solenoid valve DN20 is a good solution to make your equipment work again. We offer a wide range of Honeywell spare parts for burners, gas trains etc. We supply original Elster (Kromschröder) & Honeywell (Maxon) products.

If you have any queries about Honeywell shut-off gas valves or any other Honeywell spare parts, please write us at 624burner@gmail.com, quoting the item code VE4020B1145T.
